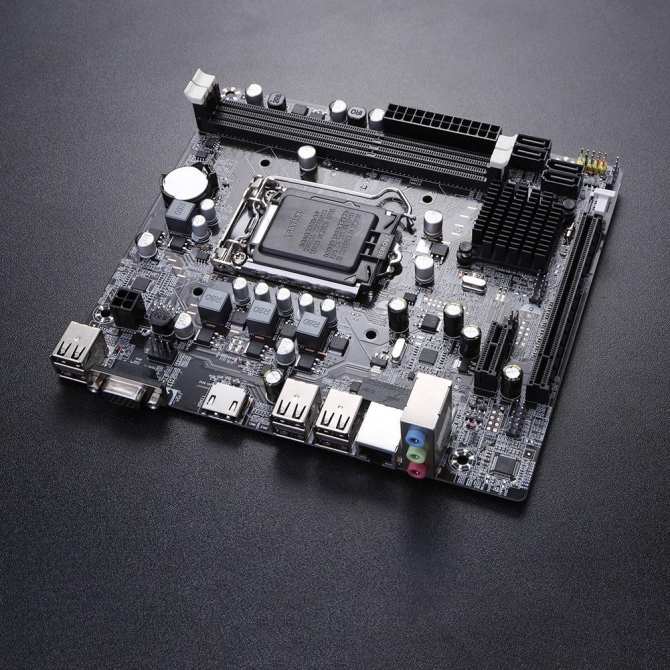

H61 Desktop Computer Mainboard Motherboard 1155 Pin CPU Interface Upgrade USB3.0 B75
Specification:

Motherboard chip:

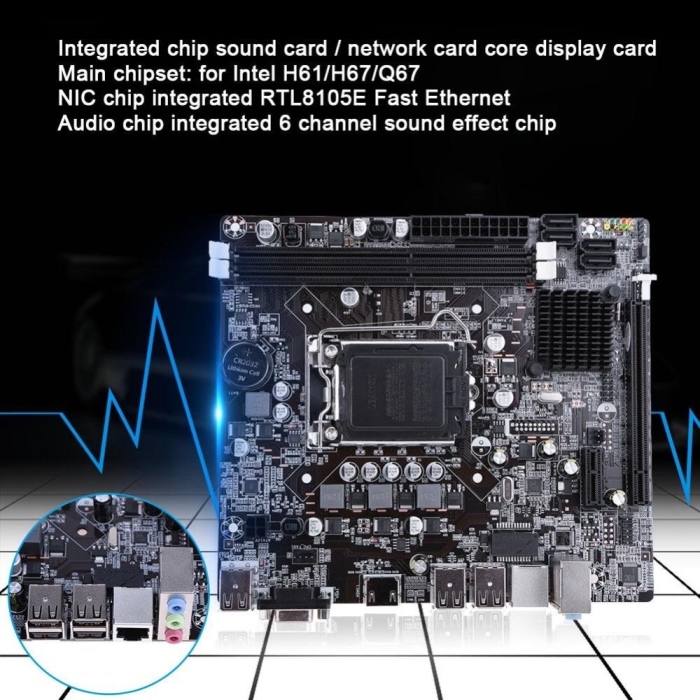

Integrated chip sound card / network card core display card
Main chipset: for Intel H61/H67/Q67
NIC chip integrated RTL8105E Fast Ethernet
Audio chip integrated 6 channel sound effect chip

Processor:
CPU platform: for Intel core two or three generation

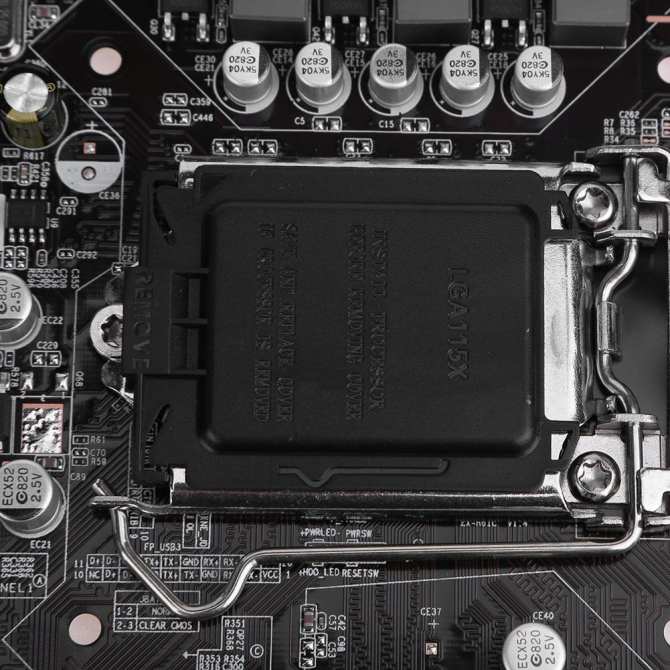

CPU slot: LGA 1155
Support CPU number: 1pc

Memory:
Memory type: DDR3 1600/1333/1066 MHZ
Memory slot: 2 x DDR3

Expansion Slots:
1 x PCI-E X16 card slot
1 x PCI-E X1 slot
1 x USB2.0 inserting needle
4 x SATA2.0 interface

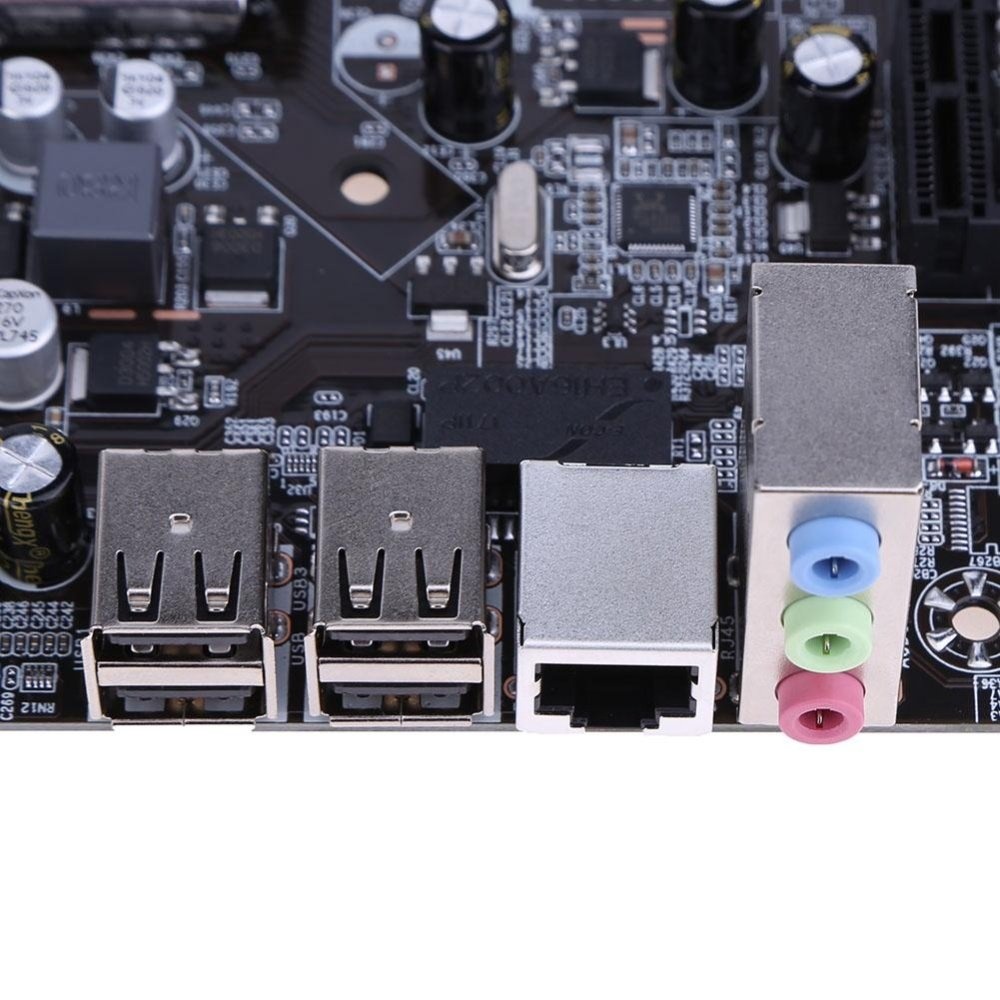

I/O interface:
1 x USB Key
1 x USB Mouse
1 x RJ45 network interface

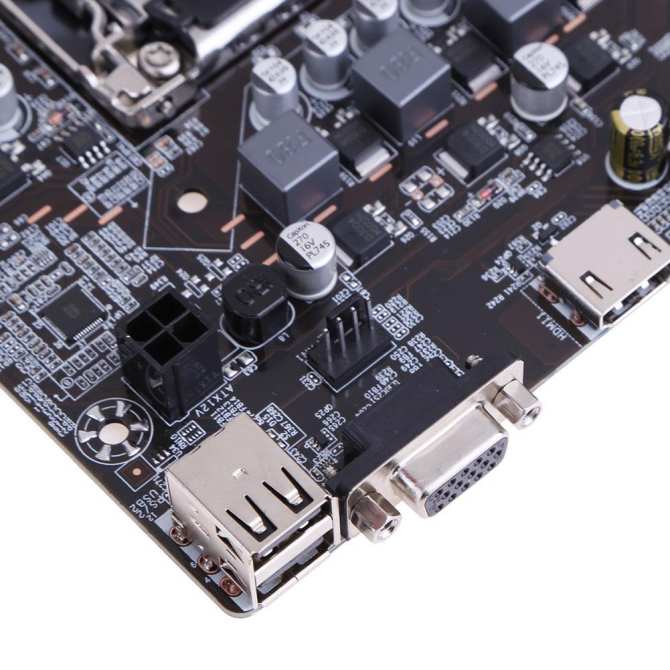

1 x VGA interface
1 x HDMI high-definition output
4 x USB 2.0 interface

Audio interface:
Main board size: approx.17*19cm/6.69*7.48""
Net weight: approx.0.38kg

Other:
1 x 4 pin power socket
1 x 24 pin power interface
3 phase of power supply mode

Note: The color of the slot base may be different, the product is continuously optimized and upgraded, if the details are not updated in time to update the page, please forgive!
Please allow 1-3mm differs due to manual measurement.
Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding
